RCDrift.io V0: RC Drift, simplified. A brand new radio-controlled drift chassis.

Name: RCDrift.io V0
Brand: RCDrift.io

Meet V0. Get the highlights.

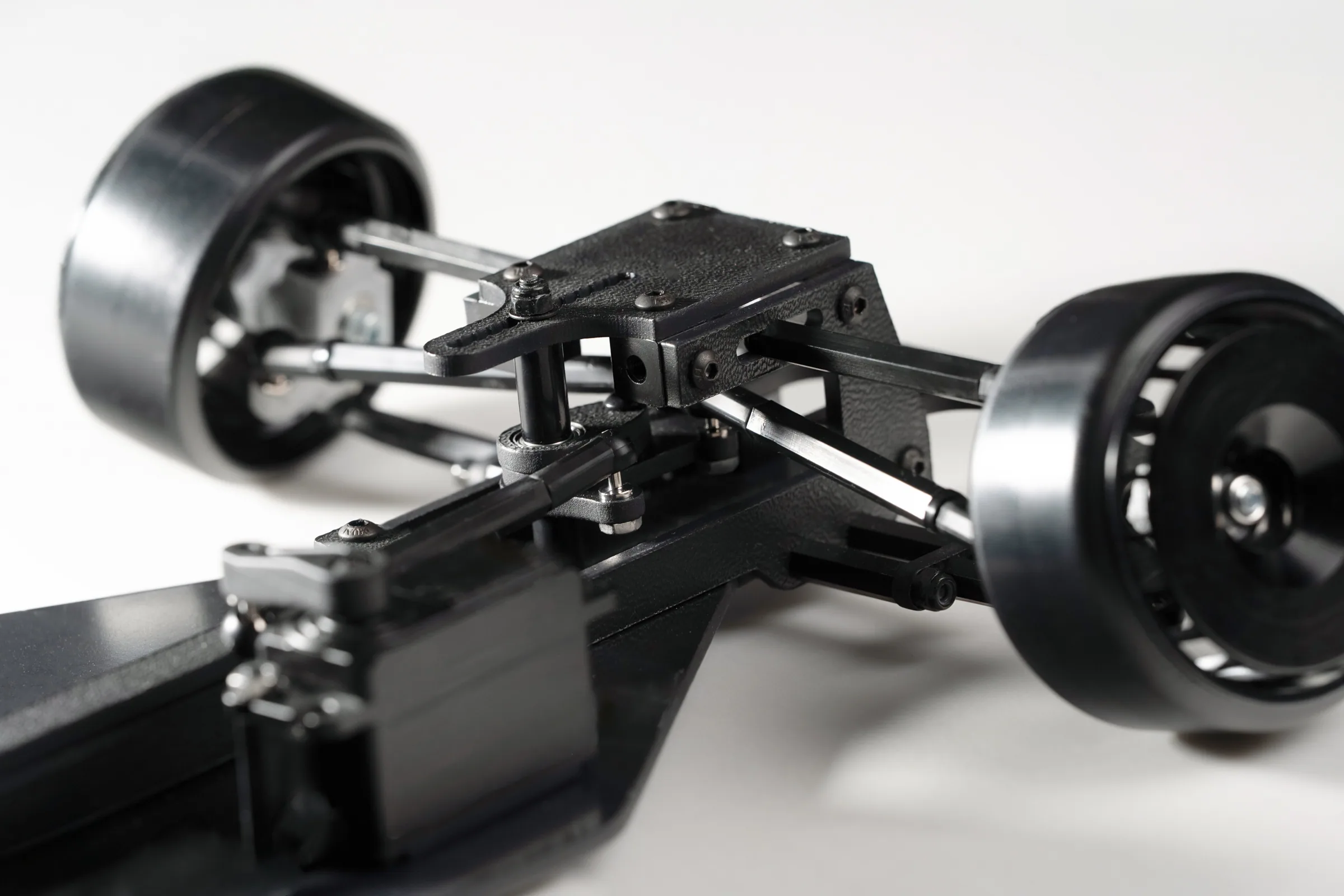

Close-up of the V0 front end and steering

Go to chapter: 01 / Geometry

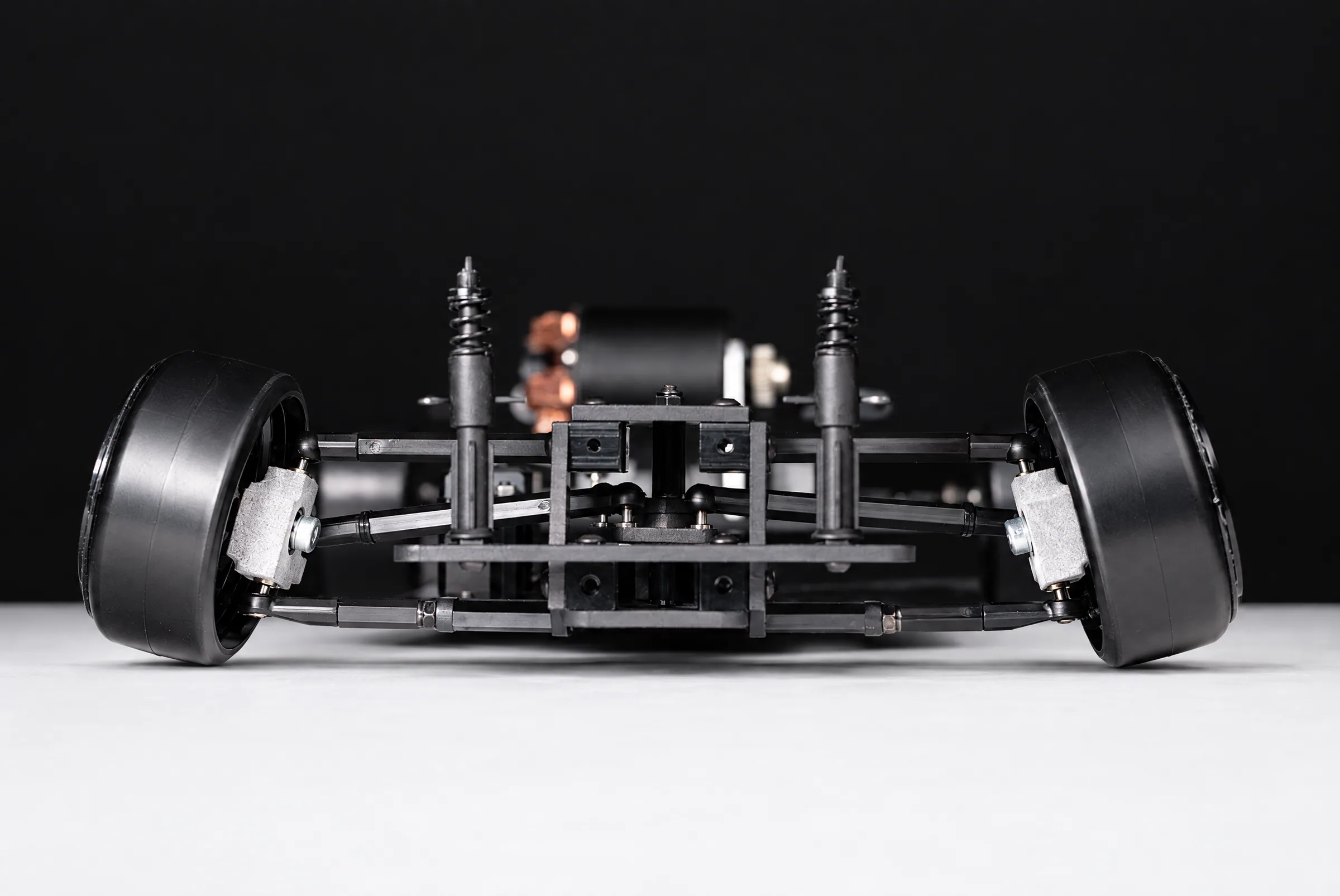

The V0 head-on at floor level, showing the front arms, knuckles and steering

Go to chapter: 02 / Chassis

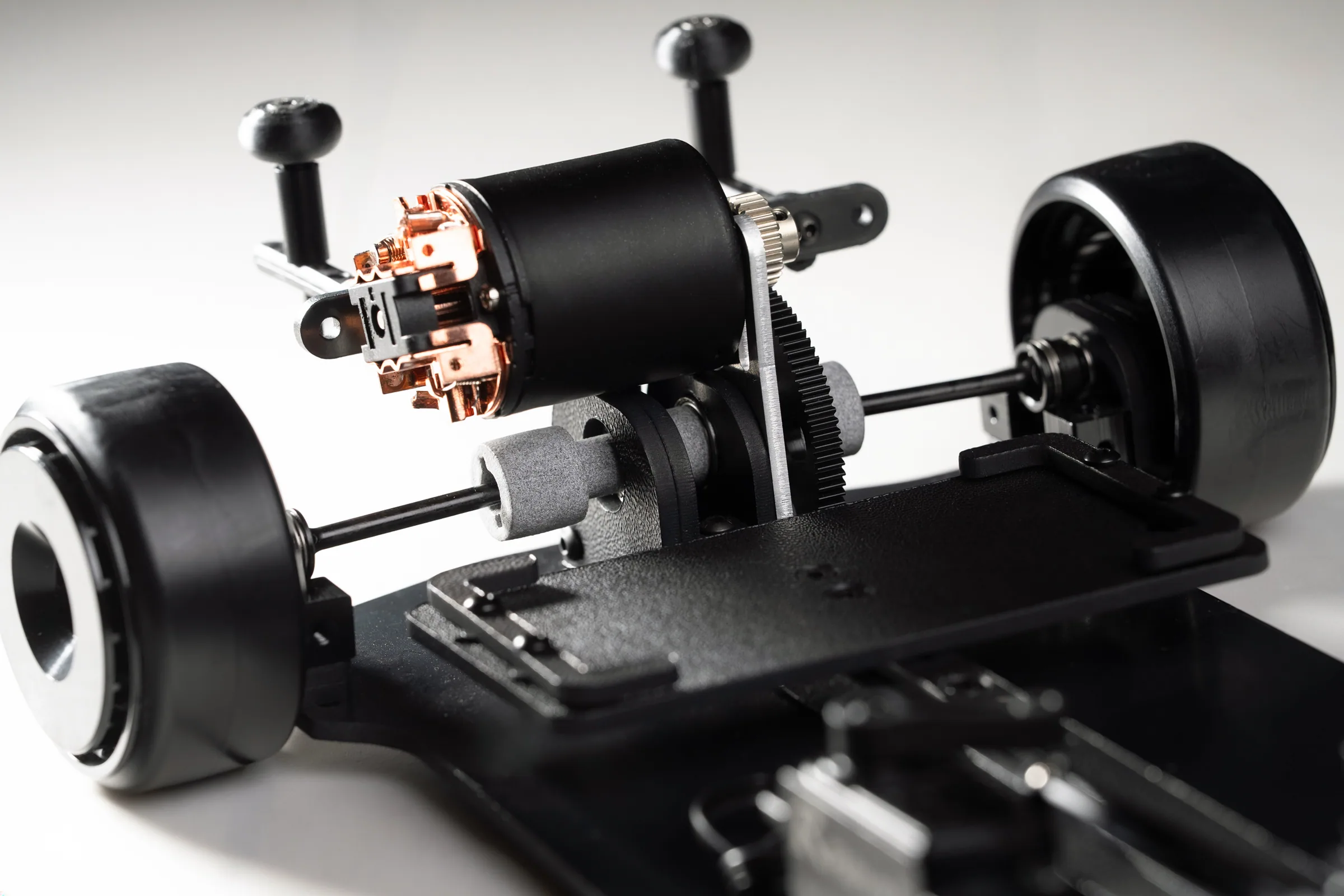

The V0 motor, spur gear and 3D printed spool from the rear

Go to chapter: 03 / Drivetrain

Go to chapter: 04 / Deck skins

Go to chapter: Closer look

The RCDrift.io V0

Simple. On purpose.

V0 is a 1/10 RWD drift chassis built from as few parts as possible. Laser-cut 3mm ABS, MJF 3D printed parts and readily available spares keep it simple to build and cheap to run.

Scale

1/10

drift chassis

Drive

RWD

direct drive

Adjustments

6

ways to tune it

See all six

Pictured with parts you'll add yourself, like the motor, servo, wheels and tyres.

Parts and materials

All printed parts are MJF.

Design

Every part,in plain sight.

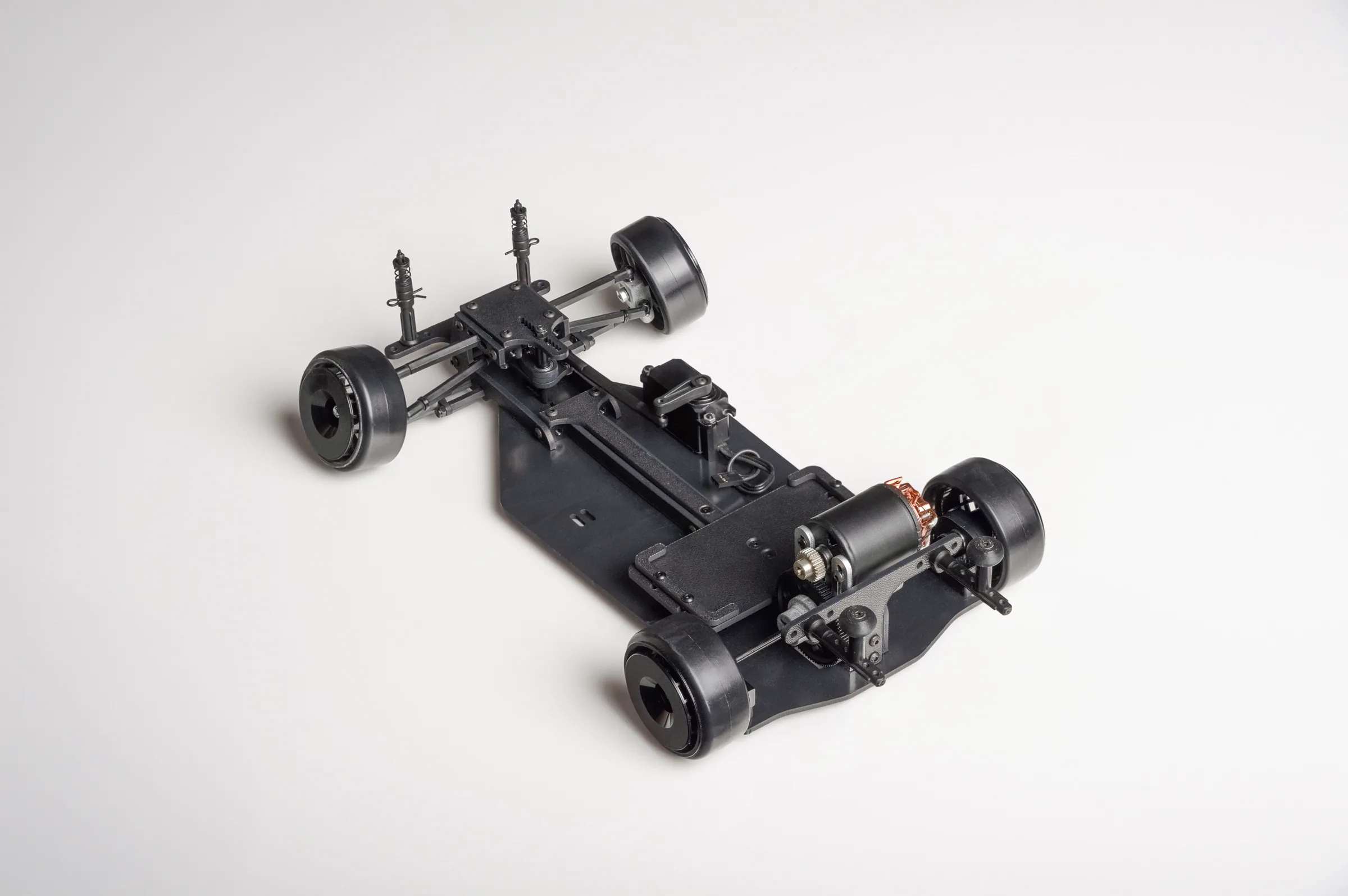

The RCDrift.io V0 drift chassis, seen from above at the rear left

Six ways to tune it. None of them fiddly.

Front caster, camber, toe and Ackermann, plus wheelbase length and battery position. Enough adjustment to dial it in, without the complexity.

Adjustability

The tilt of the steering axis, seen from the side.

Diagrams are illustrative and exaggerated for clarity. They show what each adjustment changes, not its direction or how far it goes.

Flex, built in. Less to set up, less to go wrong.

There's no traditional suspension and no shock absorbers. The V0 is a rigid design with flex built into the chassis.

3mm ABS chassis plates. Laser-cut. The main parts are cut from 3mm ABS plastic.
M3 Nylon standoffs. Simple arm mounts. M3-threaded nylon standoffs mount the arms to the chassis.
MJF 3D printed parts. Printed where it counts. The steering knuckles and the three-part spool are MJF 3D printed.
Zero Shock absorbers. Flex does the work. No traditional suspension. The flex is built into the chassis instead.

3mm

ABS chassis plates

3mm
ABS chassis plates
Laser-cut.
The main parts are cut from 3mm ABS plastic.
M3
Nylon standoffs
Simple arm mounts.
M3-threaded nylon standoffs mount the arms to the chassis.
MJF
3D printed parts
Printed where it counts.
The steering knuckles and the three-part spool are MJF 3D printed.
Zero
Shock absorbers
Flex does the work.
No traditional suspension. The flex is built into the chassis instead.

Direct drive.Nothing in between.

The motor drives straight into a three-part, MJF 3D printed spool.

No belts
No centre shaft
No gearbox to rebuild

Motor. Drives straight into the spool.
Three-part spool. All three parts are MJF 3D printed.
Parts you can actually find. The V0 is built around readily available parts, like TT02-style CVD driveshafts, so spares are easy to get and cheap to replace.
Rear-wheel drive. Power goes to the rear wheels only.

TT02

Style CVD driveshafts

Make it yours. Deck skins, designed with the community.

We worked with designers from the community on deck skins that apply to the bottom of the deck. Choose a design and make your V0 look like nobody else's.
